35kv CT PT Transformer Epoxy Resin HV Current Transformers With Accuracy Level 0.5 0.2S and 5VA

Brand Name : MacweyTEK

Model Number : LZZBJ71-35

Certification : IEC

Place of Origin : China

MOQ : 1 piece

Price : $350

Payment Terms : T/T

Supply Ability : 20000

Delivery Time : 15 days

Packaging Details : wooden case

Name : CT PT Transformer

Material : Epoxy resin

Accuracy Level : 0.5 - 0.2S

Voltage : 0.66KV

Rate Output : 5VA

Process : Epoxy resin casting product

Contact Now

High Voltage Three Phase CT Current Transformer for Switchgear 35kv Current Transformer


Model :LZZBJ71-35 Current Transformer
Model :LZZBJ71-35
Material:Epoxy resin
Accuracy Level 0.5 -0.2S
Voltage 0.66KV
Rate Output: 5VA
Process Epoxy resin casting product
standard: GB1207/T-2014
Rated current :5-6000a
Secondary Rated current:5A/1A Protection level:10P
Name: Current transformers(CT)
Rated insulation level:40.5/95/185
Rated secondary current:5A.1A.

35kv CT PT Transformer Epoxy Resin HV Current Transformers With Accuracy Level 0.5 0.2S and 5VA


Type
Rated primary
current(A)
Accurately class
Rated output(VA)
short-time thermal
current(KAS)
Rated dynamic current (KA)
0.2 0.5 10P10
LZZBJ71-35W 15 0.2/10P15
0.5/10P15		 10 20 50 2.25/2 5.6
20 3.0/2 7.5
30 4.5/2 11.25
40 6.0/2 15
50 7.5/2 18.75
75 11.25/2 28
100 15/2 37.5
150 31.5/1 80
200 31.5/2 80
300 31.5/3 80
400 31.5/3 80
500 31.53 80
600 15 30 50 31.5/4 80
800 31.5/4 80
1000


40/4 100
1200 40/4 100
1250 40/4 100
1500 40/4 100
1600 40/4 100
2000 40/4 100


Product Tags:

35kv CT PT Transformer



Epoxy Resin HV Current Transformers



HV Current Transformers 35kv


Wholesale 35kv CT PT Transformer Epoxy Resin HV Current Transformers With Accuracy Level 0.5 0.2S and 5VA from china suppliers

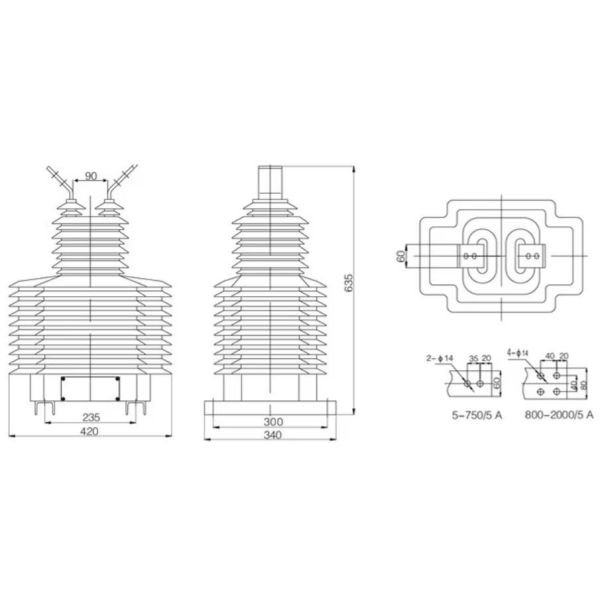

35kv CT PT Transformer Epoxy Resin HV Current Transformers With Accuracy Level 0.5 0.2S and 5VA Images
