Outdoor CT PT Transformer 35kV Epoxy Resin Current Transformer For High Voltage Power Systems

Brand Name : MacweyTEK

Model Number : LZZW-35

Certification : IEC

Place of Origin : Ningbo, China

MOQ : 1 piece

Price : $1200

Payment Terms : T/T

Supply Ability : 5000 pcs

Delivery Time : 20 days

Packaging Details : wooden case

Name : CT PT Transformer

Rated Voltage : 35kV AC (50Hz/60Hz)

Insulation Structure : Epoxy Resin Cast, Fully Enclosed, Moisture/Pollution-Resistant

Accuracy & Output : 0.2/0.2s/0.5/0.5s/10p10/10p15, 10/18VA Rated Output

Installation Environment : Outdoor, Pollution Class IV, -25~+40℃ (Optional -40℃)

Specifications : Complies with IEC185/GB1208-2006, Up to 500A Primary Current (Customizable)

Contact Now

35kV High-Voltage LZZW-35 35kV Current Transformer | Outdoor Epoxy Resin Cast Type | OEM Factory


Product descriptions
The LZZW-35 Current Transformer is a fully enclosed, resin-cast post-type CT designed for 35kV outdoor power systems at 50Hz / 60Hz. ·Suitable for energy metering, current measurement, and relay protection. ·Built with epoxy resin insulation for superior electrical performance and durability. ·Designed according to IEC185 and GB1208-2006 standards, ensuring accuracy and reliability in high-voltage applications. Widely applied in substations, industrial power distribution, and medium-voltage grid systems.

Service conditon

·Installation: Outdoor, free from severe pollution & corrosive environments
·Ambient temperature: -25°C ~ +40°C (optional: -40°C on request)
·Altitude: ≤1000m
·Pollution class: IV (designed for polluted outdoor environments)
·Atmospheric conditions: No explosive gases, heavy steam, or dust that affect insulation
·Vibration: Stable operation, free from strong vibration & shock

Construction & Features

·Resin-cast insulation: Fully enclosed, moisture-proof, and pollution-resistant.
·Pillar-type design: Compact, durable, and easy to install.
Primary / Secondary configuration:
Primary current: Up to 500A (custom options available)
·Secondary: 5A standard output
·High insulation strength: Rated insulation level 40.5/95/185 kV.
·Standards: Complies with IEC185 / GB1208-2006.

Technical Parameters
Current (A)
Combination
Rated Output (VA)
Current (ka/s)
Current (kA)
0.2s
0.2
0.5
10p10
10p15
5-100
0.2
10
10
15
15
10
13.5
34
150
0.2s





18
45
200
0.5





27
67.5
300
0.5s





30
75
400
10p10





36
90
500
10p15





40
1001In
600






N/A
N/A
750-1000






N/A
N/A
Partial discharge: Meets GB1208-2006 / IEC185 standards Secondary current: 5A standard

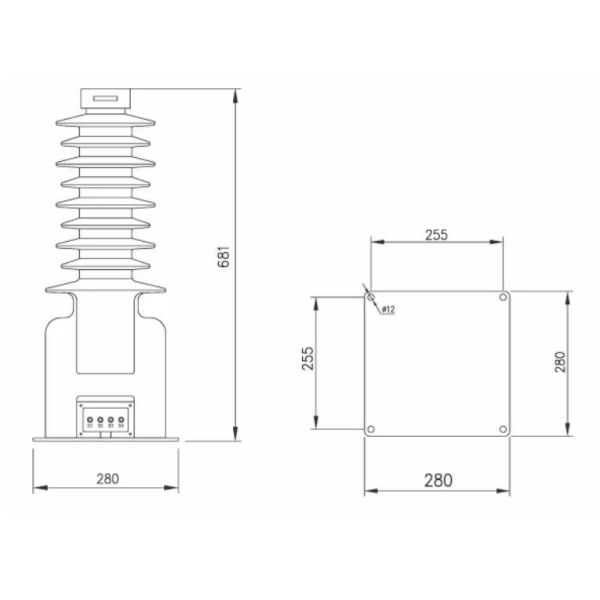

Outline & Dimensions

·Compact design for easy outdoor installation.
·Standard mounting dimensions available.
·Outline drawings & installation guides provided on request.
